Description
Krona Koblenz Kombi Hybrid K1060
Sold : each
Availability
3-6 weeks from date of order
Product Information
Usage: Commercial and residential doorsets
Weight Rating
60kg – 2 Hinges
Material
Steel / Zamk
Minimum Door Thickness
32 mm
Additional Information
A concealed hinge made of highly resistant steel for flush doors with wooden, steel and aluminium frames. Load capapcity up to 60kg, 180 opening angle with the minimum door thickness of 32mm. Wear-resistant bushings, lubrications/maintenance not required, reseversible for the right and left handle doors.
3D-adjustable, all adjustments are independent, tool aided and self loading.

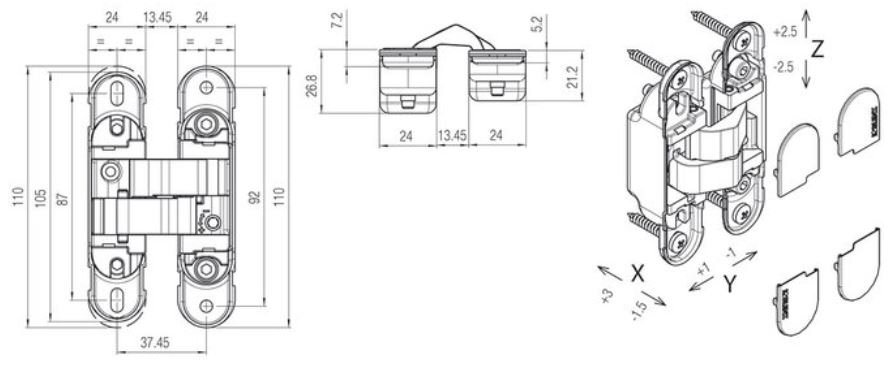

Adjustments: horizontal +3,0/-1,5mm, vertical =+/-2,5mm, Planar +/- 1,0mm
Cover caps are supplied with this product
