Krona Koblenz Adjustable Concealed Multiaxial Hinges K7120

£93.73 - £101.00
£78.11 - £84.17
Clear
SKU: K.7120 Category:

Description

Krona Koblenz Adjustable Concealed Multiaxial Hinges K7120

Sold : each

Availability

3-6 weeks from date of order

Black is a special order finish – please get in touch to discuss your needs

Product Information

Usage: Commercial and residential doorsets

Weight Rating

140kg – 3 Hinges

120kg – 2 Hinges

Material

Zamak body, hardened steel pins, aluminium covers, teflon bearing

Minimum Door Thickness

40mm

A concealed hinge for flush doors with wooden, steel and aluminium frames. CE-branded, load capacity up to 120 kg with 2 hinges, 140 kg with three hinges, 180° opening angle with the minimum door thickness of 40mm. Wear-resistant bushings, lubrication/maintenance not required, reversible for right- and left-hand doors RH/LH.

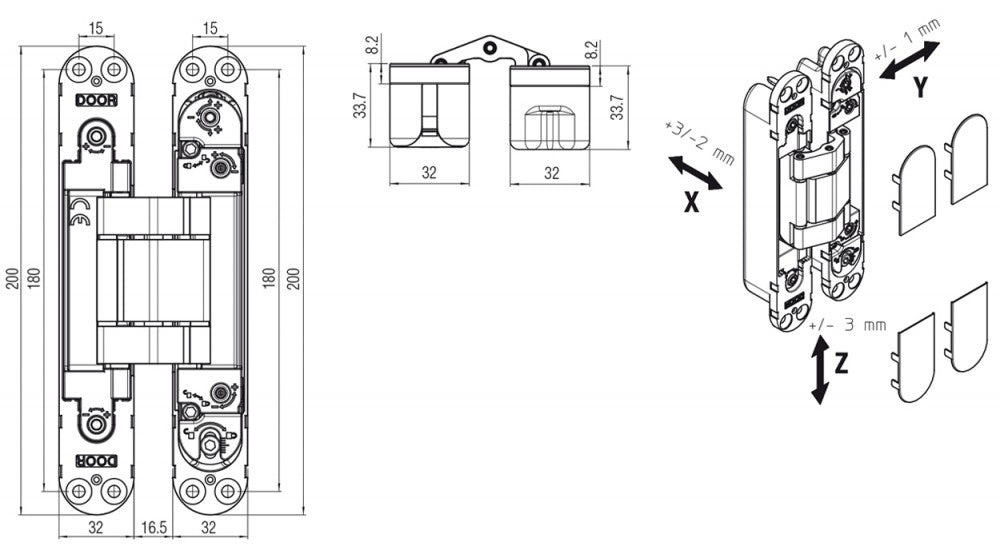

 3D-adjustable, all adjustments are indipendent, tool-aided and self-loading. Adjustments: horizontal + 3,0/-2,0 mm, vertical +/- 3,0 mm, depth +/- 1,0 mm. Finishes..

FIRE RATED 30 Minutes

CE Certified
