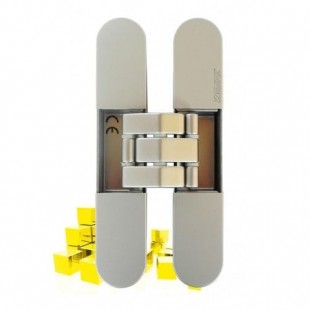

Krona Koblenz Adjustable Concealed Multiaxial Hinges K7080

£53.00 - £67.84
£44.17 - £56.53
Clear
SKU: N/A Category:

Description

Krona Koblenz Adjustable Concealed Multiaxial Hinges K7080

Sold : each

Availability

3-6 weeks from date of order

Black / Bronze / Imperial Bronze / Polished Chrome – these finishes are special order – please get in touch to discuss your needs

Product Information

Usage

Commercial and residential doorsets

Weight Rating

100kg – 3 Hinges

80kg – 2 Hinges

Material

Zamak body, hardened steel pins, aluminium covers, teflon bearing

Minimum Door Thickness

40mm

Suitable for use with a door closer

A concealed hinge for flush doors with wooden, steel and aluminium frames. UL-ULC certified, CE branded, load capacity up to 80kg with 2 hinges, 100 kg with three hinges. 180 opening angle with the minimum door thickness of 38mm. Wear resistant bushing, lucrication.maintenance not required, reversible for right and left hand doors RH/LH.

3D adjustable, all adjustments are independent, tool aided and self loading.

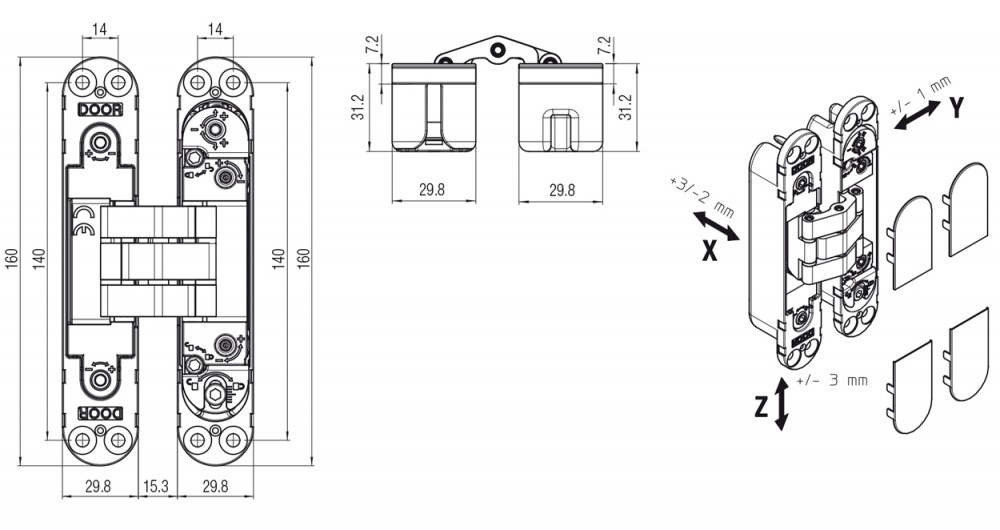

Adjustments: horizontal + 3,0/-2,0 mm – vertical +/- 3,0mm – depth +/- 1,0mm

FIRE RATED 30 Minutes

CE Ceritifed
